Upgrade Your Mosley...
Conversion kits available for your Mosley antenna. Add frequencies, improve performance, increase capabilities with kits to upgrade your antenna.
As with all Mosley antennas, pieces are all pre-drilled and color coded, which makes assembly quick and easy. Our hardware is made of the best grade of stainless steel and our tubing is aircraft grade drawn aluminum. The warranty is two year against any defects of material or workmanship.
Not all kits available are listed. If there is something you are looking for please feel free to contact us!
As with all Mosley antennas, pieces are all pre-drilled and color coded, which makes assembly quick and easy. Our hardware is made of the best grade of stainless steel and our tubing is aircraft grade drawn aluminum. The warranty is two year against any defects of material or workmanship.
Not all kits available are listed. If there is something you are looking for please feel free to contact us!
ITEM
DESCRIPTION
Antenna Conversion Kits
Conversion Kit, adds 12 and 17 meters to TA-34-XL
Conversion kit combination: 34-WARC kit,12-17 meter with TA-40-KR kit, 40 meter
Conversion Kit, adds 12 and 17 meters
Conversion kit combination: CL-WARC kit,12-17 meter with TA-40-KR kit, 40 meter
Conversion Kit, adds 12 and 17 meters
2" OD mast mounting hardware kit
2" OD mast mounting hardware kit for TA-31
3" OD mast mounting hardware kit
2" OD mast mounting hardware and TA 6" plate
2" OD mast mounting hardware and TA 6" plate, drilled for 'MY'
2" OD mast mounting hardware and TA plate
Conversion Kit, converts MINI-31-A to MINI-32-A
Conversion Kit, converts MINI-31-A to MINI-33-A
Conversion Kit, converts MINI-32-A to MINI-33-A
Conversion Kit, adds 12 and 17 meters
Conversion Kit, high power upgrade for the TA-33-JR
Conversion Kit, high power upgrade for the TA-33-JR with TA-40-KR, 40 meter kit
Conversion Kit, high power upgrade for the TA-33-JR WARC
Conversion Kit, converts PRO-57-B to PRO-57-B30, 30 meter rotatable dipole kit
Conversion Kit, converts PRO-57-B to PRO-57-B40, 40 meter rotatable dipole kit
Conversion Kit, converts PRO-57-B to PRO-67-B, 40 meter 2 element kit
Conversion Kit, converts PRO-57-B to PRO-67-C2
Conversion Kit, converts PRO-57-B-40 to PRO-67-B
Conversion Kit, converts PRO-57-B40 to PRO-67-C2
Conversion Kit, converts PRO-67-B to PRO-67-C2
Conversion Kit, converts PRO-95 to PRO-96-2, 40 meter 3 element kit
Conversion Kit, converts RV-3C to RV-4C
Conversion Kit, converts S-401-M to S-402-M
Conversion Kit, converts S-402-M to S-403-M
Conversion Kit, adds 12 and 17 meters
Conversion kit combination: SR-WARC kit,12-17 meter with TA-40-KR kit, 40 meter
Conversion Kit, adds 30 meter rotatable dipole
Conversion Kit, adds 40 meter rotatable dipole

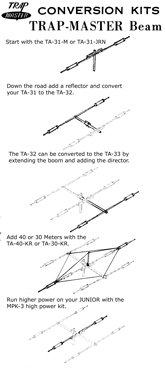

Conversion Kit, converts TA-31 to TA-32-M
Conversion Kit, converts TA-31 to TA-33-M
Conversion Kit, converts TA-32 to TA-33-M
Conversion Kit, converts TA-32-JR to TA-33-JR-M
Conversion Kit, converts TA-32-JR-N to TA-33-JR-N
Conversion Kit, converts TA-33 to TA-34-M
Conversion Kit, converts TA-53 to TA-54-XL
Conversion Kit, converts TA-53 to TA-54-XLN6
Conversion Kit, converts TA-53 to TA-63-N
Conversion Kit, converts TA-54-XL to TA-54-XLN6
Conversion Kit, converts TA-63 to TA-54-XLN6
Conversion Kit, converts TW-31-XL to TW-32-XL
Conversion Kit, converts TW-32-XL to TW-33-XL
Conversion Kit, converts TW-33-XL to TW-34-XL
SKT stacking kit, AM-14-2
Phasing harness, Power Master AM-14-2
Below are some specification tables for our more popular conversion kits. Other specifications are available upon request or by comparing to the specifications of the model you are upgrading to.
Model
Frequency, MHz
VSWR at frequency
Forward Gain, dBd
Front-to-Back Ratio, dB
Power Rating, watts CW
Power Rating, watts SSB
Power Rating, watts AM/FM
Power Rating, watts RTTY/AMTOR
Assembled weight
Wind Surface Area
Wind Load, EIA 80 MPH
CL-WARC Kit
Adds 24, 18
1.0/1 to 1.7/1
0
0
1500
2500
600
600
+10 lbs / +4.54 kg
+1 sq ft / +0.09 sq m
+11 lbs / +4.99 kg
JR-WARC Kit
Adds 24, 18
1.0/1 to 1.65/1
0
0
500
1200
250
250
+6 lbs / +2.72 kg
+0.8 sq ft / +0.07 sq m
+12 lbs / +5.44 kg
SR-WARC Kit
Adds 24, 18
1.0/1 to 1.65/1
0
0
1500
2500
600
600
+9 lbs / +4.08 kg
+1.0 sq ft / +0.09 sq m
+15 lbs / +6.80 kg
Model
Frequency, MHz
VSWR at frequency
Forward Gain, dBd
Front-to-Back Ratio, dB
Power Rating, watts CW
Power Rating, watts SSB
Power Rating, watts AM/FM
Power Rating, watts RTTY/AMTOR
Maximum Element Length Added
Assembled weight
Wind Surface Area
Wind Load, EIA 80 MPH
Turning Radius
TA-30-KR
Adds 10
1.5/1 or better
0
0
1500
2500
600
600
+5 ft / +1.52 m
+10 lbs / +4.54 kg
+1.1 sq ft / +0.10 sq m
+28 lbs / +12.7 kg
+2 ft / +0.61 m
MOSLEY CL-WARC Kit * 12 & 17 Meter Rotatable Dipole Kit for Mosley Models:CL-33-M
Add 12 & 17 meters to your CL-33 without degradting the performance on 10, 15, or 20. Single feedline. Converts the Mosley CL-33 to a CL-33-M WARC.
Modification kit includes a driven element along with all hardware and part changes necessary to the CL-33.
New to the CL-33 series is the ability to add 40 meters to the CL-33 WARC. You can now use our standard TA-40-KR to add 40 meters once the CL WARC KIT has been added. Ask about discount pricing when ordering both the CL WARC KIT and TA-40-KR together.
Add 12 & 17 meters to your CL-33 without degradting the performance on 10, 15, or 20. Single feedline. Converts the Mosley CL-33 to a CL-33-M WARC.
Modification kit includes a driven element along with all hardware and part changes necessary to the CL-33.
New to the CL-33 series is the ability to add 40 meters to the CL-33 WARC. You can now use our standard TA-40-KR to add 40 meters once the CL WARC KIT has been added. Ask about discount pricing when ordering both the CL WARC KIT and TA-40-KR together.
MOSLEY JR-WARC Kit * 12 & 17 Meter Rotatable Dipole Kit for Mosley Models: TA-32-JR, TA-33-JR
MOSLEY SR-WARC Kit * 12 & 17 Meter Rotatable Dipole Kit for Mosley Models:MP-33, TA-32-M, TA-33-M, TA-34 (Specify 'M' or 'XL')

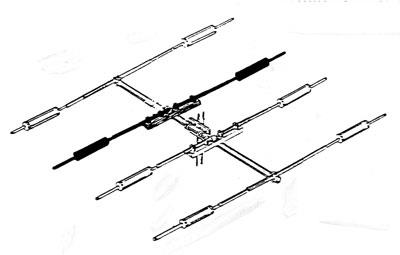

Add 12 and 17 meters in addition to 10, 15, and 20 meters by using a WARC rotatable dipole conversion kit on your Mosley TA beam antenna. Kit includes 12 & 17 radiator element, stainless steel hardware, Mosley's custom 'Q' match and assembly instructions.
MOSLEY SR-WARC Kit * 12 & 17 Meter Rotatable Dipole Kit for Mosley Models:MP-33, TA-32-M, TA-33-M, TA-34 (Specify 'M' or 'XL')
Add 12 and 17 meters in addition to 10, 15, and 20 meters by using a WARC rotatable dipole conversion kit on your Mosley TA beam antenna. Kit includes 12 & 17 radiator element, stainless steel hardware, Mosley's custom 'Q' match and assembly instructions.
MOSLEY MPK-3 or MPK-3W Kit
Converts a TA "Junior" to full legal power or converts a TA-33-JR WARC to full legal power.
Converts a TA "Junior" to full legal power or converts a TA-33-JR WARC to full legal power.
TA-40-KR
Adds 7
1.5/1 or better
0
0
1500
2500
600
600
+12 ft / +3.66 m
+10 lbs / +4.54 kg
+1.5 sq ft / +0.14 sq m
+30 lbs / +13.61 kg
+4 ft / +1.22 m
MOSLEY TA-30-KR or TA-40-KR *Rotatable Dipole Kit for Mosley Models:CL-33-M-WARC, MP-33, MP-33-WARC, TA-31-M, TA-32-M, TA-33-M, TA-33-M-WARC, Any of the older TA "Senior" type, TA-34-M, TA-34-XL, TA-34-XL-WARC, TA-53-M, TA-54-XL, TA-63-N, TA-54-XL-N-6
The TA-40-KR will turn your present antenna into a rotatable dipole on 40 meters, giving you a much better signal than you would expect. (TA-30-KR for 30 meters)
If you think your "V", wire dipole, or vertical is doing just fine, think again! The TA-40-KR will give you BETTER performance with the ability to rotate your signal. It truly is worth the time and effort.
The TA-40-KR will turn your present antenna into a rotatable dipole on 40 meters, giving you a much better signal than you would expect. (TA-30-KR for 30 meters)
If you think your "V", wire dipole, or vertical is doing just fine, think again! The TA-40-KR will give you BETTER performance with the ability to rotate your signal. It truly is worth the time and effort.
ANTC-34-WARC KIT
ANTC-34WARC/40KR
ANTC-CL-WARC KIT
ANTC-CLWARC/40KR
ANTC-JR-WARC KIT
ANTC-MASTHDWKIT-2
ANTC-MASTHDWKIT-2TA31
ANTC-MASTHDWKIT-3
ANTC-MASTMNTKIT-2TA6P
ANTC-MASTMNTKIT-2TA6P-MY
ANTC-MASTMNTKIT-2TAP
ANTC-MINI-31A/32A
ANTC-MINI-31A/33A
ANTC-MINI-32A/33A
ANTC-MINI-WARC KIT
ANTC-MPK-3
ANTC-MPK-3/40KR
ANTC-MPK-3W
ANTC-PRO-57-B/57-B30
ANTC-PRO-57-B/57-B40
ANTC-PRO-57-B/67-B
ANTC-PRO-57-B/67-C2
ANTC-PRO-57-B40/67-B
ANTC-PRO-57-B40/67-C2
ANTC-PRO-67-B/67-C2
ANTC-PRO-95/96-2
ANTC-RV3C/RV4C
ANTC-S-401-M/402-M
ANTC-S-402-M/403-M
ANTC-SR-WARC KIT
ANTC-SRWARC/40KR
ANTC-TA-30-KR
ANTC-TA-40-KR
ANTC-TA31/TA32-M
ANTC-TA31/TA33-M
ANTC-TA32/TA33-M
ANTC-TA32JR/TA33JR-M
ANTC-TA32JRN/TA33JR-N
ANTC-TA33/TA34-M
ANTC-TA53/TA-54-XL
ANTC-TA53/TA-54-XLN6
ANTC-TA53/TA-63-N
ANTC-TA54XL/TA-54-XLN6
ANTC-TA63/TA-54-XLN6
ANTC-TW31XL/TW32-XL
ANTC-TW32XL/TW33-XL
ANTC-TW33XL/TW34-XL
ANTK-STACKKIT-AM142
ANTP-PHASE-AM142
