The Sign of Quality
American Made
"MINI" Series
MOSLEY ELECTRONICS, INC.
NOTE:  CUT-DOWN OR TRAVEL VERSIONS AVAILABLE, contact us for details.
Mosley reserves the right to change product and material specifications without prior notice or obligation.

Mosley MINI-32-A


Model
Frequency, MHz
Power Rating, watts CW
Power Rating, watts SSB
Power Rating, AM/FM
Power Rating, RTTY/AMTOR
VSWR at frequency
Forward Gain, dBd / Elements on 10 m
Forward Gain, dBd / Elements on 12 m
Forward Gain, dBd / Elements on 15 m
Forward Gain, dBd / Elements on 17 m
Forward Gain, dBd / Elements on 20 m
Front-to-Back Ratio, dB 10 m
Front-to-Back Ratio, dB 12 m
Front-to-Back Ratio, dB 15 m
Front-to-Back Ratio, dB 17 m
Front-to-Back Ratio, dB 20 m
Boom Length
Maximum Element Length
Turning Radius
Mast Mount hardware (equipped)
Assembled Weight
Wind Surface Area
Wind Load, EIA Standard 80 MPH
Warranty
Recommended Coax
MINI-31-A
28, 21, 14
500
1000
250
250
1.0/1 to 2.0/1
0 / 1
-
0 / 1
-
0 / 1
0
-
0
-
0
-
17.0625 ft / 5.2 m
8.53 ft / 2.6 m
1.5 in / 3.81 cm
2.5 lbs / 1.13 kg
0.8 sq ft / 0.07 sq m
28 lbs / 12.7 kg
2 years
RG-8 / RG-213
Copyrightę Mosley Electronics, Inc. / mosleyelectronics.com               All Rights Reserved. M.E.I.
M.E.I.®   MOSLEY ELECTRONICS                       Sales: 800-325-4016     Technical: 636-583-8595
MINI Mast Mount Plate
MINI-21-A
24, 18
500
1000
250
250
1.0/1 to 2.0/1
-
0 / 1
-
0 / 1
-
-
0
-
0
-
-
17.0625 ft / 5.2 m
8.53 ft / 2.6 m
1.5 in / 3.81 cm
2.5 lbs / 1.13 kg
0.8 sq ft / 0.07 sq m
28 lbs / 12.7 kg
2 years
RG-8 / RG-213
MINI-32-A
28, 21, 14
500
1000
250
250
1.0/1 to 2.0/1
5.1 / 2
-
4.5 / 2
-
3.3 / 2
17 (avg)
-
17 (avg)
-
17 (avg)
6 ft / 1.83 m
19.6875 ft / 6 m
10.29 ft / 3.14 m
1.5 in / 3.81 cm
9.5 lbs / 4.31 kg
2.5 sq ft / 0.232 sq m
38 lbs / 17.24 kg
2 years
RG-8 / RG-213
MINI-32-AW
28, 24, 21, 18, 14
500
1000
250
250
1.0/1 to 2.0/1
5.1 / 2
0 / 1
4.5 / 2
0 / 1
3.3 / 2
17 (avg)
0
17 (avg)
0
17 (avg)
6 ft / 1.83 m
19.6875 ft / 6 m
10.29 ft / 3.14 m
1.5 in / 3.81 cm
12.5 lbs / 5.67 kg
3.7 sq ft / 0.344 sq m
49 lbs / 22.23 kg
2 years
RG-8 / RG-213
AUTOMATIC BAND SWITCHING
by means of high-impedance resonant trap circuits!
Mosley MINI-32-A
Mosley MINI-32-A WARC
Parasitic Element Mount
Model
Frequency, MHz
Power Rating, watts CW
Power Rating, watts SSB
Power Rating, AM/FM
Power Rating, RTTY/AMTOR
VSWR at frequency
Forward Gain, dBd / Elements on 10 m
Forward Gain, dBd / Elements on 12 m
Forward Gain, dBd / Elements on 15 m
Forward Gain, dBd / Elements on 17 m
Forward Gain, dBd / Elements on 20 m
Front-to-Back Ratio, dB 10 m
Front-to-Back Ratio, dB 12 m
Front-to-Back Ratio, dB 15 m
Front-to-Back Ratio, dB 17 m
Front-to-Back Ratio, dB 20 m
Boom Length
Maximum Element Length
Turning Radius
Mast Mount hardware (equipped)
Assembled Weight
Wind Surface Area
Wind Load, EIA Standard 80 MPH
Warranty
Recommended Coax
NOTE:  CUT-DOWN OR TRAVEL VERSIONS AVAILABLE, contact us for details.
Mosley reserves the right to change product and material specifications without prior notice or obligation.
MINI-33-A
28, 21, 14
500
1000
250
250
1.0/1 to 2.0/1
6.1 / 3
-
4.2 / 3
-
3.5 / 3
16
-
13
-
12
6 ft / 1.83 m
19.6875 ft / 6 m
10.29 ft / 3.14 m
1.5 in / 3.81 cm
12.5 lbs / 5.67 kg
2.5 sq ft / 0.232 sq m
38 lbs / 17.24 kg
2 years
RG-8 / RG-213
MINI-33-AW
28, 24, 21, 18, 14
500
1000
250
250
1.0/1 to 2.0/1
6.1 / 3
0 / 1
4.2 / 3
0 / 1
3.5 / 3
16
0
13
0
12
6 ft / 1.83 m
19.6875 ft / 6 m
10.29 ft / 3.14 m
1.5 in / 3.81 cm
15.5 lbs / 7.03 kg
3.7 sq ft / 0.344 sq m
49 lbs / 22.23 kg
2 years
RG-8 / RG-213
STANDARD MINI MODEL NEXT TO A CUT-DOWN TRAVEL VERSION
COMPONENTS BREAK DOWN TO UNDER 4 ft / 1.22 m
Mosley MINI-33-A WARC

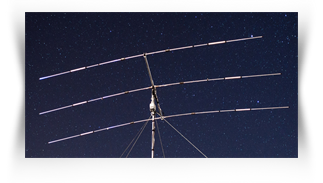

Mosley MINI-33-A Under the Stars
Mosley MINI-32-A
Select Quality, Specify Mosley...     ...Mosley, a better Antenna!
MINI Phasing
Parasitic Element Mount



The MINI series is built in the Mosley tradition of quality, simplicity, and strength.  Available in 1, 2, & 3 element configurations.

The MINI antennas offer an ultra light weight design, a small foot print, with good all-around performance, & Mosley ruggedness.

Our hardware is made of the best grade of stainless steel and our tubing is aircraft grade drawn aluminum.

As with all Mosley Amateur antennas the warranty is two year against any defects of material or workmanship.



The MINI series is built in the Mosley tradition of quality, simplicity, and strength.  Available in 1, 2, & 3 element configurations.

The MINI antennas offer an ultra light weight design, a small foot print, with good all-around performance, & Mosley ruggedness.

Our hardware is made of the best grade of stainless steel and our tubing is aircraft grade drawn aluminum.

As with all Mosley Amateur antennas the warranty is two year against any defects of material or workmanship.
THE MOSLEY MINI IS THE ANSWER TO THE ANTENNA SPACE PROBLEM, WHILE GIVING YOU GREAT PERFORMANCE AND DURABILITY.
THE MOSLEY MINI IS THE ANSWER TO THE ANTENNA SPACE PROBLEM, WHILE GIVING YOU GREAT PERFORMANCE AND DURABILITY.
