Classic, 3 element 10 meter beam
Classic, 4 element 10 meter beam
Classic, 5 element 10 meter beam
Classic, 6 element 10 meter beam
Classic, 3 element 15 meter beam
Classic, 4 element 15 meter beam
Classic, 5 element 15 meter beam
Classic, 6 element 15 meter beam
MODEL
Frequency, MHz
Forward Gain, dBd
Front-to Back Ratio, dB
Power Rating, watts CW
Power Rating, watts SSB
VSWR at frequency
Feed Point Impedance, ohms
Number of Elements
Boom Length
Turning Radius
Mast Size, in. hardware equipped
Maximum Element Length
Assembled weight (approx.)
Wind Surface Area
Wind Load, EIA 80 MPH
Warranty
Recommended Coax
CL-103
28
8.3
20-25
1000+
2000+
1.5/1
50-52
3
12 ft / 3.66 m
11.167 ft / 3.40 m
2 in / 5.08 cm
18.33 ft / 5.59 m
22 lbs / 9.98 kg
4.36 sq ft / 0.405 sq m
89 lbs / 40.37 kg
2 Years
RG-8 / RG-213
Mosley Classic 'CL' Heavy Duty

NOVEMBER 15, 2012

From: Barry Haley  Sent: Monday, November 01, 2010

I told you I would send you some pictures HI HI.   We put it up last Friday 10-29-2010 it is working GREAT I have been getting 59+++ signal reports all over the world, what a eye opener how much better it works at 85 feet than were it was at 22 feet WOW.

It is dead flat over the whole Band I can hear signals other stations can't, they asked me are you really coping Him the answer is Hell yes.

Thank you for building me A Great Antenna it works better Than I had Hoped it would

73S KI5WE Barry Haley
Mosley CL-206 6 Element 20 Meter Beam
From: Sam Maze
Sent: Thursday, August 11, 2016 12:55 AM
To: mosley@mosley-electronics.com
Subject: CL-203

In 2015 I installed a new Rohn 55 G tower and decided to put up a Mosley CL-203 20 meter monobander!  It was one of the best decisions I have ever made with an antenna!   We are in the declining sun cycle and this antenna really performs!    I live on top of a hill and get 60+mph winds very often and the antenna is rock solid!  I am 70 years old and I think this will be the last antenna I will ever need?    Thanks to Mosley for building high quality antennas that really perform !

Samuel Maze   W8SPM  Parkersburg,WV
Mosley CL-203
CL-153
21
8.4
20-25
1000+
2000+
1.5/1
50-52
3
14 ft / 4.27 m
14 ft / 4.27 m
2 in / 5.08 cm
24.083 ft / 7.34 m
30 lbs / 13.608 kg
5.43 sq ft / 0.504 sq m
111 lbs / 50.35 kg
2 Years
RG-8 / RG-213
CL-203
14
8.5
23
1000+
2000+
1.5/1
50-52
3
24 ft / 7.32 m
23 ft / 7.01 m
2 in / 5.08 cm
37.708 ft / 11.49 m
40 lbs / 18.144 kg
6.8 sq ft / 0.631 sq m
131 lbs / 59.42 kg
2 Years
RG-8 / RG-213
CL-403
7
9.5
23
1000+
2000+
1.5/1
50-52
3
42 ft / 12.80 m
41.6 ft / 12.68 m
3 in / 7.62 cm
71.6 ft / 21.82 m
285.5 lbs / 129.5 kg
28.06 sq ft / 2.60 sq m
760 lbs / 334.73 kg
2 Years
RG-8 / RG-213
ANT-CL-203
ANT-CL-204
ANT-CL-205
ANT-CL-206
ANT-CL-403
Classic, 3 element 20 meter beam
Classic, 4 element 20 meter beam
Classic, 5 element 20 meter beam
Classic, 6 element 20 meter beam
Classic, 3 element 40 meter beam
ITEM
DESCRIPTION


"The Original Classic!"
"CLASSIC"... 10, 15, 20 and 40 Meters

Incorporating the Mosley patented Classic Feed System, full size single-band beams for 10 through 20 meters have "swaged" elements and wide spacing from THREE to SIX elements. The high standards in quality construction established by Mosley in over a half-century of manufacturing is reflected in the mono-band Classic Series.

Boom-to-mast clamping assures stability with a time-tested arrangement of mast plate, stainless steel U-bolts, and cast aluminum clamping blocks. The exclusive "Balanced Capacitive Matching" System has a nominal feed point impedance of 52 ohms at resonance.

No Measuring... Color-Coded, and Pre-drilled for ease of assembly. Backed by Mosley's two year warranty against defects in material and workmanship.
Mosley Amateur antennas are pre-tuned, pre-drilled and color-coded for ease of assembly which means NO MEASURING!

Hand-crafted under rigid engineering standards, Mosley antennas are constructed of highly durable drawn, aluminum tubing to withstand wind loads of (EIA Standard) 80 miles per hour. All stainless steel and non-corrosive hardware insuring longer antenna life... an average of 30 years! Mosley antennas and antenna accessories are guaranteed free of defects in material and workmanship for a period of two years from the date of delivery.

Mosley offers a variety of designs to meet the ever changing needs of Amateurs today. Hams who work both Phone and CW will appreciate the broad bandwidth characteristics of the Mosley "Power-Master" antenna series.  Looking for that big signal and superior construction; check out the original "Classic" and "Signal-Master" antenna series.

Mosley employs several different efficient feed designs to meet customer demand and preference.  For more information concerning our feed systems, please see our FAQ section.

In addition to the antennas herein listed, Mosley can produce a wide variety of larger monoband beams to meet specific requirements.  Just write or e-mail your project needs.

From cataloged antennas to custom-engineered "systems", Mosley Electronics, Inc. is anxious to serve you.  Whatever your antenna needs may be, think first of  Mosley...the World's Leader in Quality communication antennas.
Custom order six element designs & 40 Meter Classic models available by special order.  Contact us for details.
MODEL
Frequency, MHz
Forward Gain, dBd
Front-to Back Ratio, dB
Power Rating, watts CW
Power Rating, watts SSB
VSWR at frequency
Feed Point Impedance, ohms
Number of Elements
Boom Length
Turning Radius
Mast Size, in. hardware equipped
Maximum Element Length
Assembled weight (approx.)
Wind Surface Area
Wind Load, EIA 80 MPH
Warranty
Recommended Coax
MODEL
Frequency, MHz
Forward Gain, dBd
Front-to Back Ratio, dB
Power Rating, watts CW
Power Rating, watts SSB
VSWR at frequency
Feed Point Impedance, ohms
Number of Elements
Boom Length
Turning Radius
Mast Size, in. hardware equipped
Maximum Element Length
Assembled weight (approx.)
Wind Surface Area
Wind Load, EIA 80 MPH
Warranty
Recommended Coax
CL-104
28
9.5
25
1000+
2000+
1.5/1
50-52
4
18 ft / 5.49 m
13 ft / 3.96 m
2 in / 5.08 cm
19 ft / 5.79 m
36 lbs / 16.33 kg
5.75 sq ft / 0.534 sq m
145 lbs / 65.77 kg
2 Years
RG-8 / RG-213
CL-154
21
9.5
25
1000+
2000+
1.5/1
50-52
4
24 ft / 7.32 m
19 ft / 5.79 m
2 in / 5.08 cm
25 ft / 7.62 m
44 lbs / 19.96 kg
6.82 sq ft / 0.634 sq m
162.8 lbs / 73.85 kg
2 Years
RG-8 / RG-213

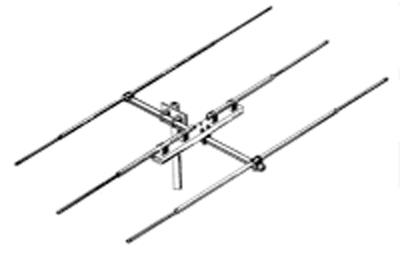

2" Boom Element Mount
CL-204
14
9.5
25
1000+
2000+
1.5/1
50-52
4
36 ft / 10.97 m
26 ft / 7.92 m
2 in / 5.08 cm
38 ft / 11.58 m
80 lbs / 36.29 kg
9.06 sq ft / 0.842 sq m
210 lbs / 95.25 kg
2 Years
RG-8 / RG-213
CL-105
28
10.5
25
1000+
2000+
1.5/1
50-52
5
24 ft / 7.32 m
16 ft / 4.88 m
2 in / 5.08 cm
19 ft / 5.79 m
45 lbs / 20.41 kg
7.18 sq ft / 0.67 sq m
148 lbs / 67.13 kg
2 Years
RG-8 / RG-213
CL-155
21
10.5
25
1000+
2000+
1.5/1
50-52
5
36 ft / 10.97 m
23 / 7.01 m
2 in / 5.08 cm
25 ft / 7.62 m
70 lbs / 31.75 kg
8.52 sq ft / 0.79 sq m
185 lbs / 83.92 kg
2 Years
RG-8 / RG-213
2" OD Boom to Mast Mount
CL-205
14
10.5
24
1000+
2000+
1.5/1
50-52
5
46 ft / 14.02 m
28 ft / 8.53 m
2 in / 5.08 cm
38.125 ft / 11.62 m
195 lbs / 88.45 kg
18.3 sq ft / 1.70 sq m
365 lbs / 165.56 kg
2 Years
RG-8 / RG-213
Mosley Power Master Series
"POWER-MASTER"... 10, 15 and 20 Meters

Mosley "Power-Master" beams are full sized arrays, each designed for operation on a single band. Mosley A-310, 10 meter three element. Mosley A-315, 15 meter three element. Mosley A-320, 20 meter three element. Superlative performance and construction characterizes each beam to insure satisfaction under most adverse conditions.

Antennas are 100% rust proof. Stainless steel hardware, high impact polystyrene insulators with drawn aluminum elements and boom will provide many additional years of trouble-free operation. Low SWR over entire band width. Maximum gain on all bands with an operating capacity well over 3 KW.

All "Power-Master" antennas are fed with 52 ohm coax using the famous Mosley Match.
MODEL
Frequency, MHz
Forward Gain, dBd
Front-to Back Ratio, dB
Power Rating, watts CW
Power Rating, watts SSB
VSWR at frequency
Feed Point Impedance, ohms
Number of Elements
Boom Length
Turning Radius
Mast Size, in. hardware equipped
Maximum Element Length
Assembled weight (approx.)
Wind Surface Area
Wind Load, EIA 80 MPH
Warranty
Recommended Coax
A-310
28
7.6
25
1000+
2000+
1.5/1
50-52
3
12 ft / 3.66 m
11.083 ft / 3.38 m
1.5 in 3.81 cm
19 ft / 5.79 m
25 lbs / 11.34 kg
3.7 sq ft / 0.344 sq m
69 lbs / 31.30 kg
2 Years
RG-8 / RG-213
A-315
21
7
25
1000+
2000+
1.5/1
50-52
3
12 ft / 3.66 m
13.166 ft / 4.01 m
1.5 in 3.81 cm
23.333 ft / 7.11 m
28 lbs / 12.70 kg
4.36 sq ft / 0.405 sq m
87 lbs / 39.46 kg
2 Years
RG-8 / RG-213
A-320
14
6.7
25
1000+
2000+
1.5/1
50-52
3
14 ft / 4.27 m
18.75 ft / 5.72 m
2 in / 5.08 cm
35.333 ft / 10.77 m
34 lbs / 15.42 kg
7.2 sq ft / 0.669 sq m
180 lbs / 81.65 kg
2 Years
RG-8 / RG-213
Mosley Signal Master Series
"SIGNAL-MASTER"... 30 and 40 Meters

"Forty" is the HOT band now and the Mosley "Signal-Master" antennas are the beams to give your signal real authority!

These rugged beauties are designed and engineered to provide the performance you need whether you are DX hunting or relaxing in a pleasant rag-chewing session.

Efficient Link Coupled Feed Coils are weather and dirt-proof offering resonant frequency stability under all weather conditions. Pre-drilled and color-coded elements for ease of assembly.

30 meter beams are full sized and built to last... ..."Command your band with a Mosley!"

All "Signal-Master" antennas are fed with 52 ohm coax using the famous Mosley Match.
Mosley S-402-M 2 Element 40 Meter Beam
Mosley SF-402-A 2 Element Shorty 40 Beam
"SHORTY FORTY"

The SF-402-A is a heavy duty, smaller 2 element beam for 40 Meters - SMALLER than the Mosley S-402-M - but still has BIG performance!

The SF-402-A is on a 14 foot boom and is less than 48 pounds assembled!
This smaller beam is built in the MOSLEY tradition and will give you YEARS of great performance! The Mosley "Signal Master" efficient link coupled feed coils are weather and dirt-proof offering resonant stability under any weather conditions.
Pre-drilled and color coded elements for ease of assembly. Mosley, …a better antenna!

SMALLER In Size - BIG In Performance!
ROTATABLE DIPOLE & 2 ELEMENT VERSIONS AVAILABLE!
MODEL
Frequency, MHz
Forward Gain, dBd
Front-to Back Ratio, dB
Power Rating, watts CW
Power Rating, watts SSB
VSWR at frequency
Feed Point Impedance, ohms
Number of Elements
Boom Length
Turning Radius
Mast Size, in. hardware equipped
Maximum Element Length
Assembled weight (approx.)
Wind Surface Area
Wind Load, EIA 80 MPH
Warranty
Recommended Coax
MODEL
Frequency, MHz
Forward Gain, dBd
Front-to Back Ratio, dB
Power Rating, watts CW
Power Rating, watts SSB
VSWR at frequency
Feed Point Impedance, ohms
Number of Elements
Boom Length
Turning Radius
Mast Size, in. hardware equipped
Maximum Element Length
Assembled weight (approx.)
Wind Surface Area
Wind Load, EIA 80 MPH
Warranty
Recommended Coax
SF-402-A
7
3.9
15-17+
1500
2500
3.9
50-52
2
14 ft / 4.27 m
23.5 ft / 7.18 m
2 in / 5.08 cm
45 ft / 13.72 m
47.5 lbs / 21.55 kg
5.9 sq ft / 0.548 sq m
144 lbs / 65.32 kg
2 Years
RG-8 / RG-213
S-301-M
10
-
-
1000+
2000+
1.5/1
50-52
1
-
24 ft / 7.32 m
2 in / 5.08 cm
46.833 ft / 14.27 m
25 lbs / 11.34 kg
3.5 sq ft / 0.33 sq m
100 lbs / 45.36 kg
2 Years
RG-8 / RG-213
S-401-M
7
-
-
1000+
2000+
1.5/1
50-52
1
-
23 ft / 7.01 m
2 in / 5.08 cm
44.25 ft / 13.49 m
25 lbs / 11.34 kg
3.5 sq ft / 0.33 sq m
100 lbs / 45.36 kg
2 Years
RG-8 / RG-213
S-402-M
7
5.2
24
1000+
2000+
1.5/1
50-52
2
24 ft / 7.32 m
27 ft / 8.23 m
2 in / 5.08 cm
45 ft / 13.72 m
70 lbs / 31.75 kg
7.5 sq ft / 0.697 sq m
225 lbs / 102.06 kg
2 Years
RG-8 / RG-213
S-403-M
7
8
25
1000+
2000+
1.5/1
50-52
3
36 ft / 10.97 m
34 ft / 10.36 m
2 in / 5.08 cm
45 ft / 13.72 m
110 lbs / 49.9 kg
12 sq ft / 1.11 sq m
320 lbs / 145.15 kg
2 Years
RG-8 / RG-213
S-302-M
10
5.2
24
1000+
2000+
1.5/1
50-52
2
24 ft / 7.32 m
27.542 ft / 8.39 m
2 in / 5.08 cm
49.583 ft / 15.113 m
80 lbs / 36.29 kg
8.0 sq ft / 0.74 sq m
235 lbs  106.59 kg
2 Years
RG-8 / RG-213
2" Boom Element Mount
S-303-M
10
8
25
1000+
2000+
1.5/1
50-52
3
36 ft / 10.97 m
30.634 ft / 9.34 m
2 in / 5.08 cm
49.583 ft / 15.113 m
125 lbs / 56.70 kg
12.5 sq ft / 56.70 sq m
330 lbs / 149.69 kg
2 Years
RG-8 / RG-213
3" OD Boom versions available for most models.  Contact us for specifications.
Mosley reserves the right to change product and material specifications without prior notice or obligation.
