The S-33 developed from our Commercial YTA Marine Line by Special Request!

The S-33 is a beam which will give you great performance on 17, 20, & 40 meters without have an antenna size that's TOO BIG to handle.

The S-33 is capable of handling any environment.  When the SUN SPOT activity is down, 17, 20, and 40 are being used the most.

Just thing; one compact beam for the 3 most favorite DX bands!

Give yourself years and years of reliable trouble-free performance!  Give your station the MOSLEY edge with the S-33!
1-800-325-4016
mosley@mosley-electronics.com
The Sign of Quality
American Made
MOSLEY ELECTRONICS, INC.











Copyrightę Mosley Electronics, Inc. / mosleyelectronics.com               All Rights Reserved. M.E.I.
M.E.I.®   MOSLEY ELECTRONICS                       Sales: 800-325-4016     Technical: 636-583-8595
Mosley reserves the right to change product and material specifications without prior notice or obligation.
"Signal Master" Multi-Band
Mosley "Super" 33

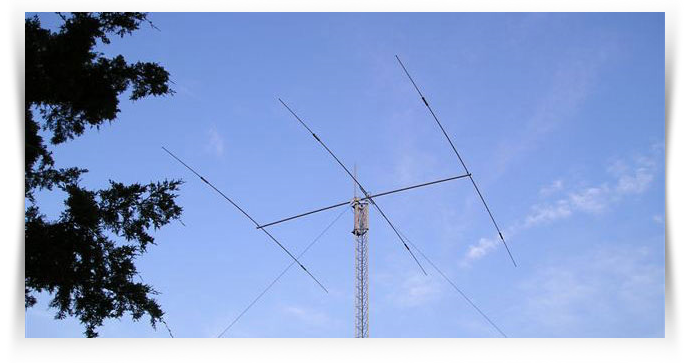

17, 20, 40 Meter 3 Element Beam Mosley S-33
Model
Frequency, MHz
Power Rating, watts CW
Power Rating, watts SSB
Power Rating, AM/FM
Power Rating, RTTY/AMTOR
VSWR at frequency
Forward Gain, dBd 17 meters
Forward Gain, dBd 20 meters
Forward Gain, dBd 40 meters
Front-to-Back Ratio, dB 17 meters
Front-to-Back Ratio, dB 20 meters
Front-to-Back Ratio, dB 40 meters
Boom Length
Maximum Element Length
Turning Radius
Mast Size hardware (equipped)
Assembled weight
Wind Surface Area
Wind Load, EIA Standard 80 MPH
Warranty
Recommended Coax
S-31
18, 14, 7
2500
5000
600
600
1.0/1 to 2.0/1
-
-
-
-
-
-
-
44.16 ft /
22.08 ft / 6.73 m
3 in / 7.62 cm
25 lbs / 11.34 kg
3.5 sq ft / 0.33 sq m
100 lbs / 45.36 kg
2 Years
RG-8 / RG-213
S-32
18, 14, 7
2500
5000
600
600
1.0/1 to 2.0/1
5.3
4.9
3.3
17
15
10
12 ft / 3.66 m
47 ft / 14.33 m
24.25 ft / 7.39 m
2 in / 5.08 cm
53 lbs / 24.04 kg
7.2 sq ft / 0.669 sq m
180 lbs / 81.65 kg
2 Years
RG-8 / RG-213
3" OD Boom Assembly
3" Boom Element Mount
S-33
18, 14, 7
2500
5000
600
600
1.0/1 to 2.0/1
8.3
7.3
6.5
25
25
20
24 ft / 7.32 m
47 ft / 14.33 m
26.39 ft / 8.04 m
2 in / 5.08 cm
95 lbs / 43.09 kg
10 sq ft / 0.93 sq m
270 lbs / 122.47 kg
2 Years
RG-8 / RG-213
Mosley NEW PRODUCT
